Drexel University’s Bentley Hall (Philadelphia, PA)

OWNER: Drexel University

DEVELOPER: American Campus Communities

GC: Hunter Roberts

WINDOWS: Crystal Window

STOREFRONT: Tubelite

CURTAINWALL: Wausau

PROJECT NOTES:

Phase 1

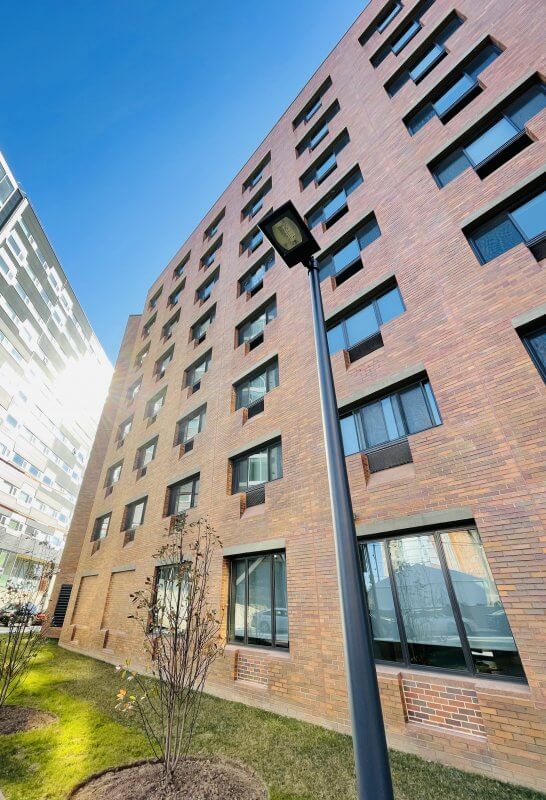

  • Crystal Window Replacement
  • Tubelite T14000 Storefront and Medium Stile Entrances – Ground Floor Exterior
  • Stanley Automatic Operators on Entrances
  • Hardware Package by Graboyes/Vendor Banner Solutions

Phase 2

Exterior

  • Design-Build Structurally Glazed Curtain Wall
  • Wausau 7250 Superwall, 2-sided SSG with vertically captured mullions, Fabricated by Graboyes

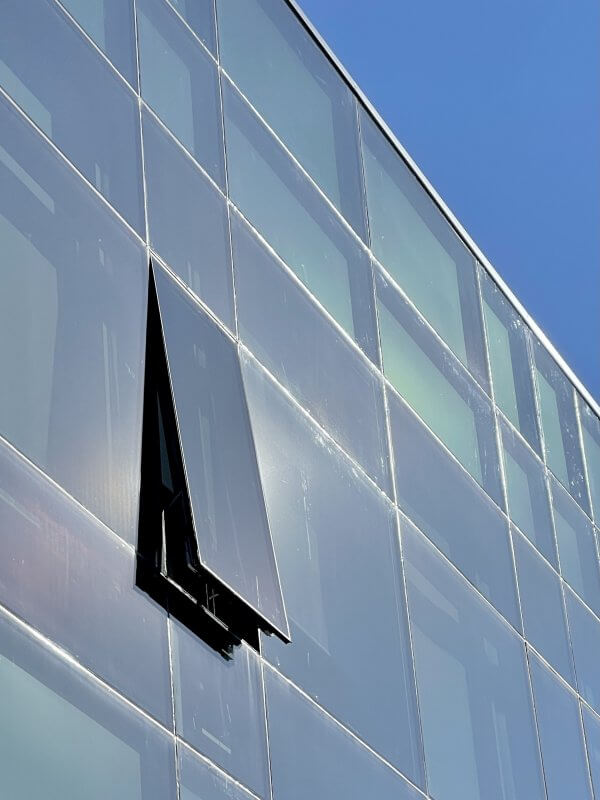

  • Wausau 7250 Superwall, 4-sided SSG with Structurally Glazed Out-Swing Zero Sightline Vents, Fabricated by Graboyes
  • Non 90-Degree Corners, Designed and Fabricated by Graboyes
  • Custom Fabricated Shadowboxes designed by Graboyes, Fabricated by Bork
  • Non-Typical corner mullions at CW designed by Graboyes, Fabricated by Petersen Aluminum
  • Slab Edge Covers and Firesafing by Tedco
  • Custom Brake Metal at floor lines, sills, designed by Graboyes, Fabricated by Bork
  • 1” Insulating Glazing Units by JEB – Opti-Gray/SolarBan 60 Tempered Units
  • Tubelite Medium and Wide Stile Aluminum Framed Doors
  • Stanley Automatic Operators on Entrances
  • Hardware Package by Graboyes/Vendor Banner Solutions

Interior

  • Tubelite E14000 Storefront Framing and E4500 Storefront Framing
  • Tubelite Medium and Wide Stile Entrances
  • Clear Tempered Glass Infills
  • Hardware Package by Graboyes/Vendor Banner Solutions
  • Field Applied Film by Eastern Solar Glass
