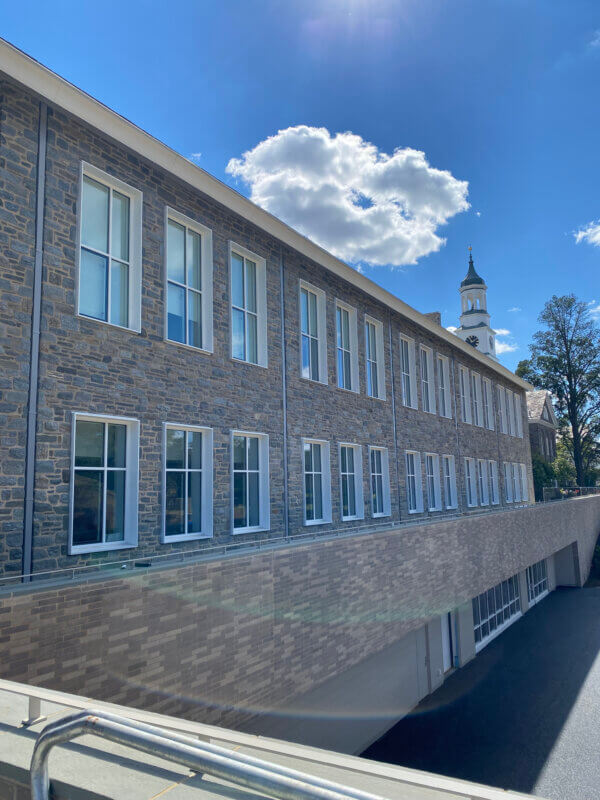

William Penn Charter School Graham Athletics & Wellness Center (East Falls, PA)

OWNER: William Penn Charter School

GC: Intech Construction

ARCHITECT: Ewing Cole

PROJECT NOTES:

  • New Construction
  • Delegated Design – Entire scope designed, engineered and executed by Graboyes and its manufacturing partners
  • Custom Extruded Curtain Wall Dies to meet design intent
  • Custom Extruded Aluminum Dies at Exterior Storefront Fin/Picture Frame
  • Custom Extruded Dies at Outrigger Sunshades attached to Storefront

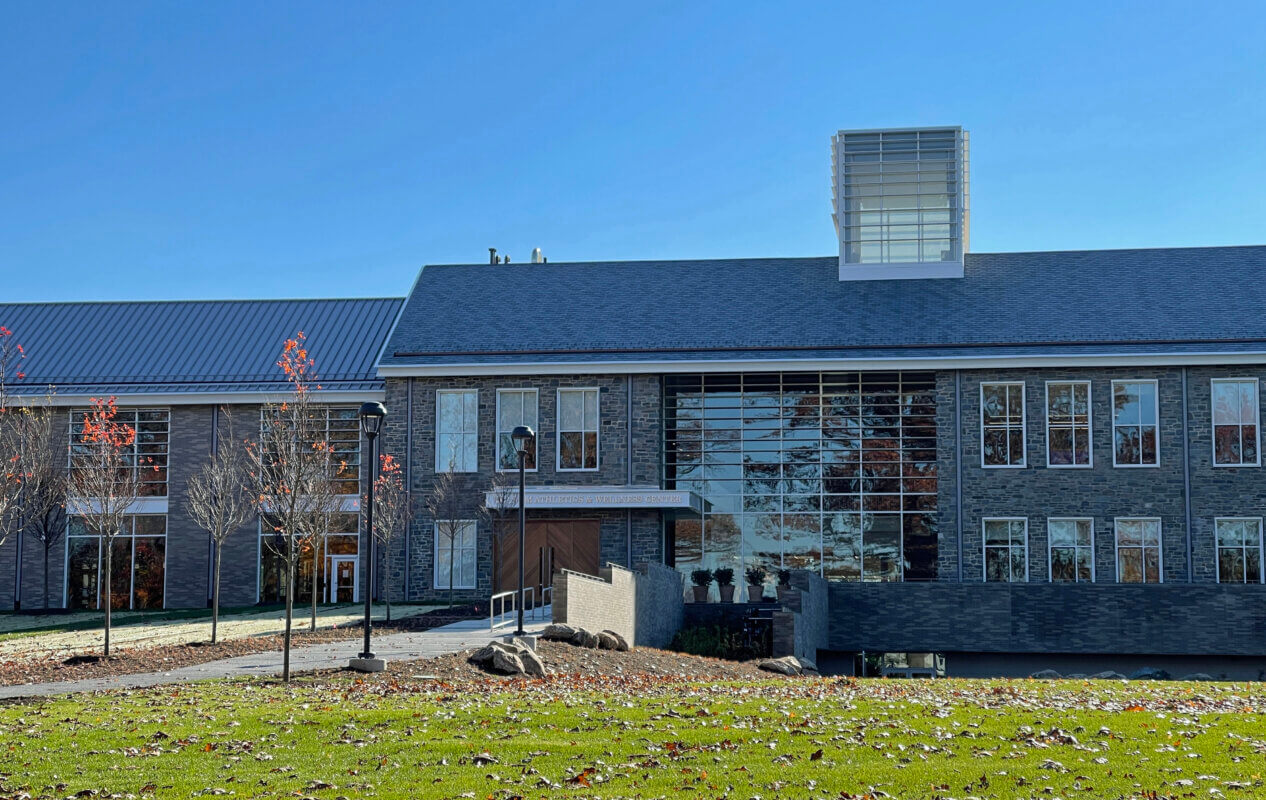

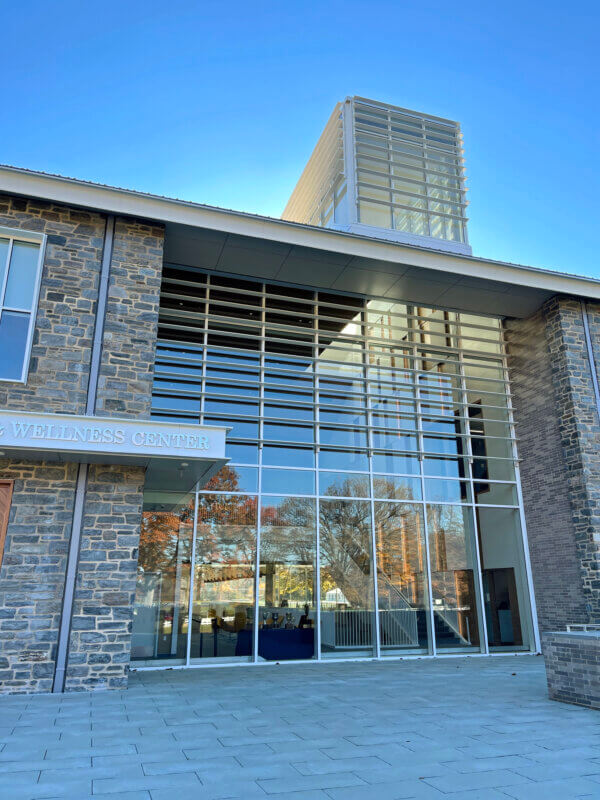

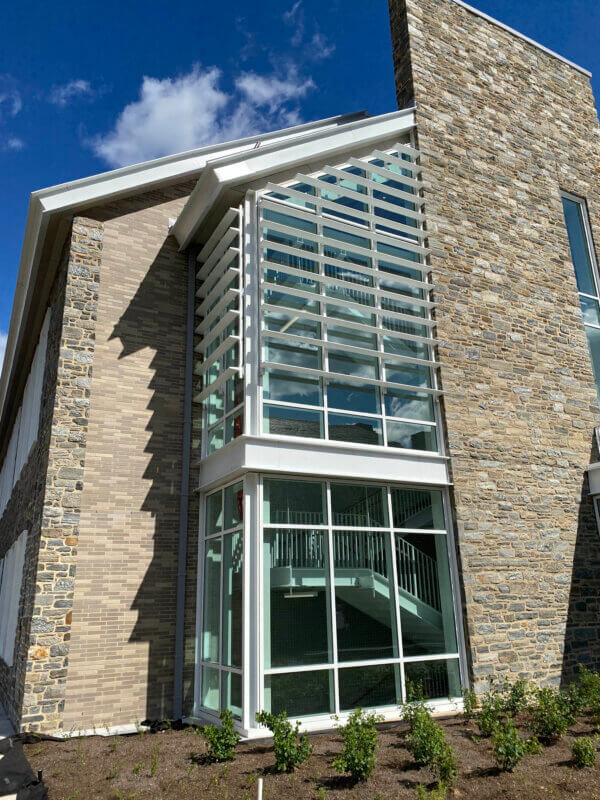

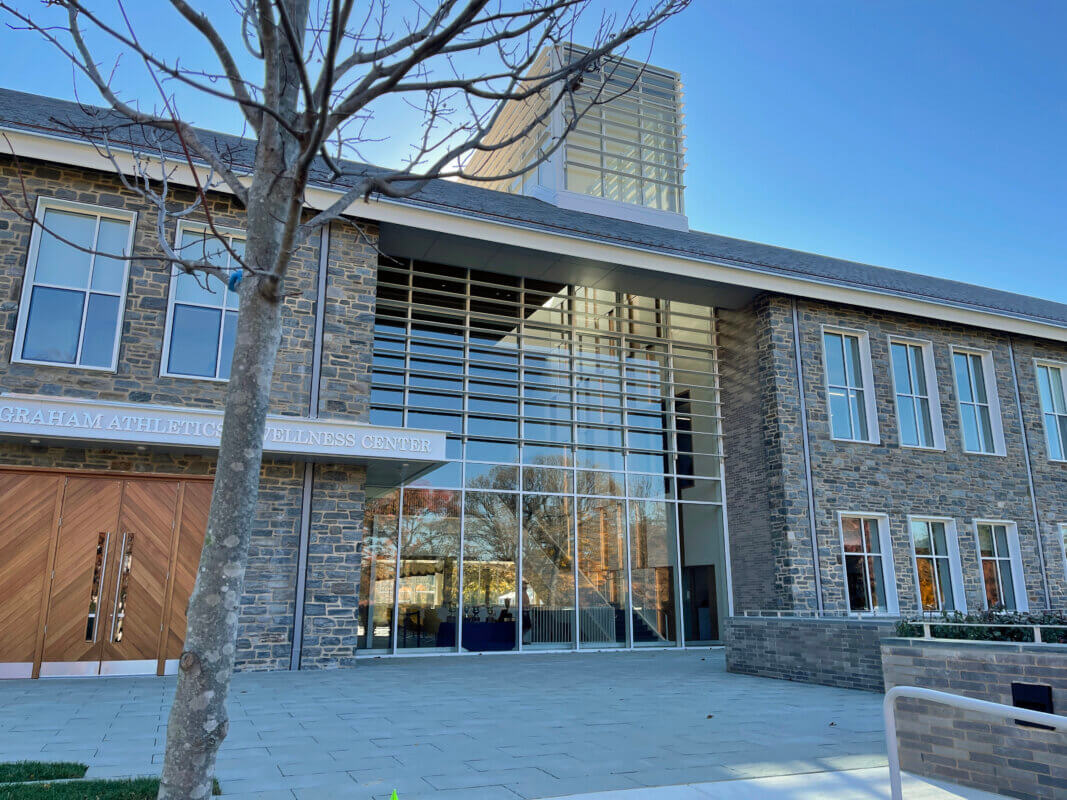

  • Custom Shaped Bell Tower Curtain Wall with integrated custom horizontal sunshades and shaped Insulating Glass Infills

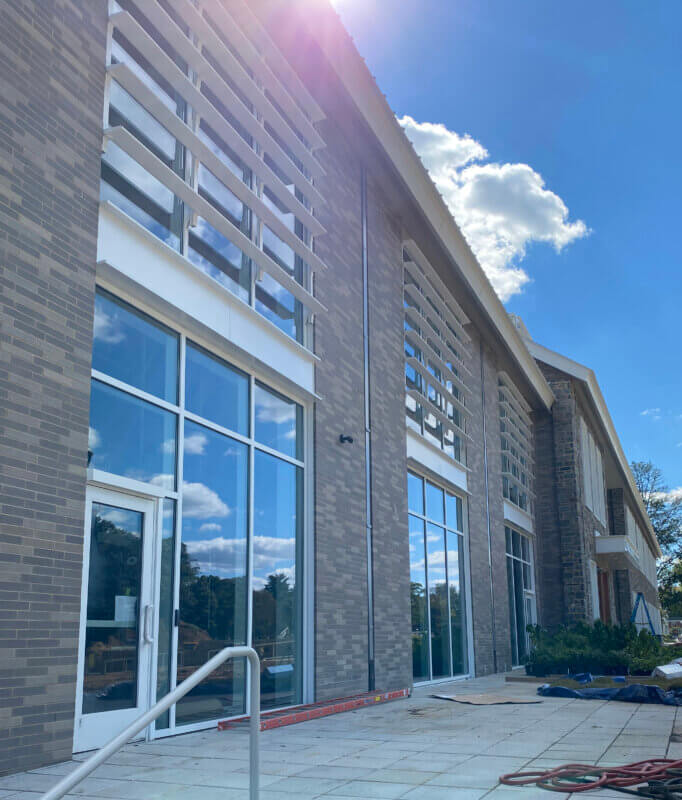

  • Custom Designed, Engineered, Fabricated and Installed 64” Projected Aluminum Sunshade with Outriggers, Structurally attached to Building Facade
  • Custom Aluminum Fins Furnished and Installed into Canopy Structure
  • 4,100 SF) 7-1/2” depth Ultra Thermal Curtain Wall
  • 8,200 SF 9” depth Ultra Thermal Curtain Wall
  • 1,200 SF 10-1/2” Depth Ultra Thermal Curtain Wall
  • 1,500 SF 6” Ultra Thermal Window Wall
  • 700 SF 4-1/2” Ultra Thermal Storefront

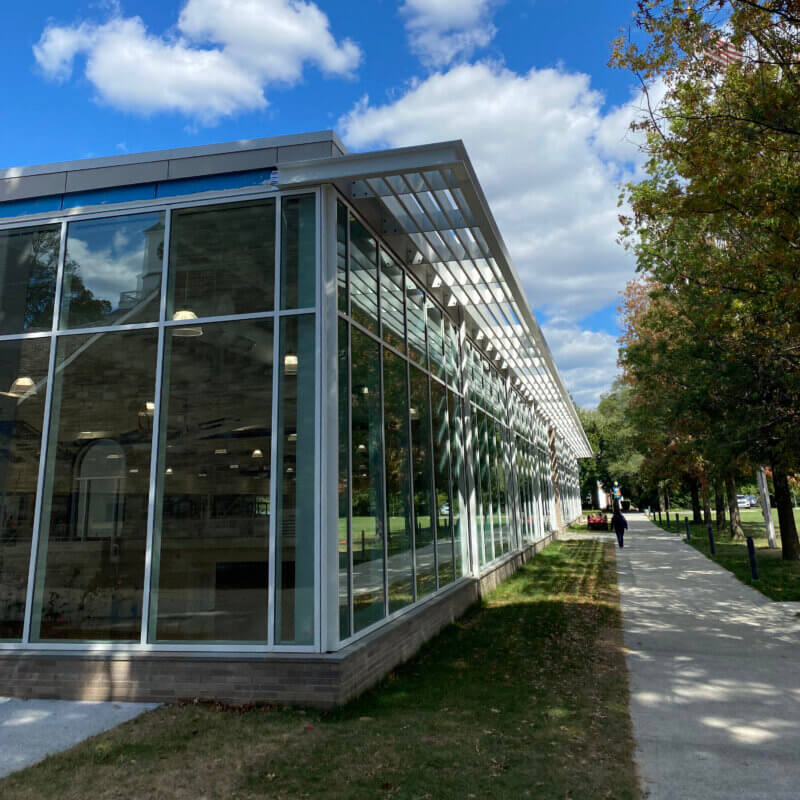

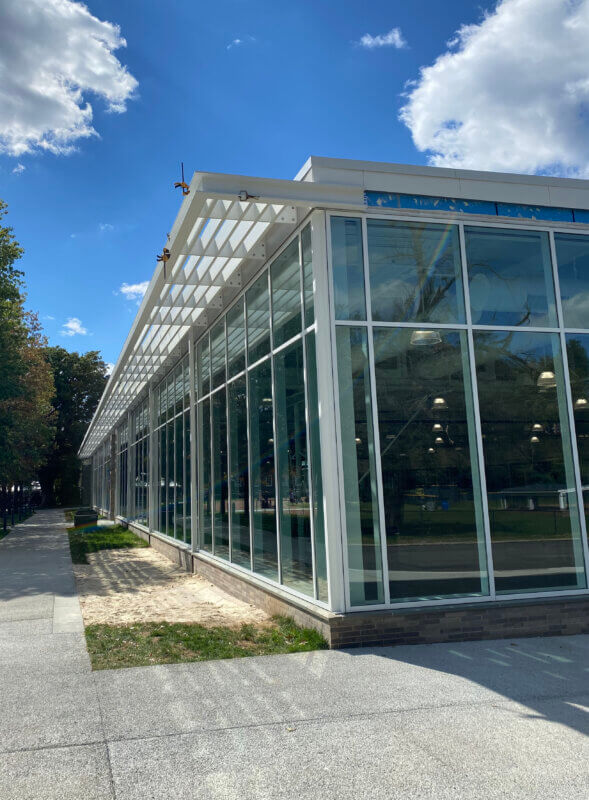

  • 1,800 LF Horizontal ThermaShade Outrigger Sunshades attached to Storefront with custom Extruded Face Shape
  • 1,000 LF Custom Extruded Picture Frame Fins attached to Exterior Storefront
  • 34 Casement Window Infills in Exterior Storefront
  • Thermal Aluminum Glazed Entrances (3 Single); (8 Pair) with ADA Hardware and Automatic Operation
  • 300 LF Custom Designed, Fabricated and Installed Sunshade, attached to Building Structure
  • 450 SF Custom Aluminum Fins Furnished and Installed into Canopy Structure
  • 1,000 SF 4-1/2” Interior Storefront with (17 Single and 7 pair) Aluminum Glazed Doors/Hardware
  • 250 SF Interior Fire Rated Storefront, including 3 Entrances with Hardware
  • Four different types of Insulating Glazing Units, including custom silk screen frit patterns
  • 85 units Miscellaneous glazing; Monolithic Tempered and Fire Rated Infills
  • 100 LF C-Shaped Interior Decorative Aluminum Slab Edge Cover in Lobby

GLASS MANUFACTURER PARTNERS:

  • YKK-AP
    • YCW750XT Curtain Wall
    • YES60XT Window Wall
    • YES45XT Storefront
    • ThermaShade Sunshades
    • YES-SSGTU Casement Windows
    • 35XT Entrance Systems
    • YES45FS Interior Storefront
    • 35D Entrance Systems
  • Viracon – Insulating Glazing Units
  • Airolite
    • Custom Aluminum Sunshade attached to Building Facade
    • Custom Aluminum Fin Infills in Canopy
  • Tri-Steel – Steel Reinforcement for Curtain Wall
  • Banner Solutions – Hardware for Entrances
  • Triumph Engineering, LLC – Glazed Systems Project Engineering
  • ADE – Automatic Door Operators
  • MR Glaziers – Fabrication of Glazed Aluminum Systems
  • Colfab – Fabrication of Aluminum Brake Metal Shapes
  • Technical Glass Products – Fire Rated Frames, Doors, Hardware, and Miscellaneous glazing
  • GEI – Miscellaneous Glazing
